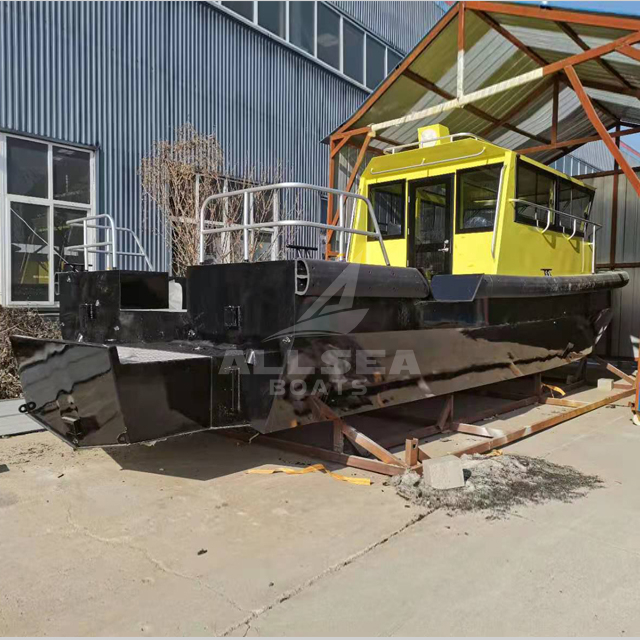

Prtrol Boat

All the boat shell plates we use is CCS certified 5083 or DNV GL Certified 5083 5mm and 6mm .
They are the best material for the ship building industry .
1) All the drawing can be custom design Via CCS or other Classification , Easy for registery in your Marine department .
2) The most reliable Marine engine will be used or recommend , For example : OXE Diesel outboard for commercial boat , Mercury Diesel inboard & stern driver , Cummins Inboard & shaft Propeller .
3) Rich experience on different kind of tenders in overseas , include Patrol boat , Landing craft , Survey boat  etc .
4) Strictly Survey inspection from boat owner to make sure al lthe specs are qualified to the tender .
and all the boat accessory are Marine grade .
5) Our boats are build to last a life time !

Length Over All, LOA(m)          11

Length Of Water Line, LWL(m)  10

Beam,BOA                             3.35

Beam,BWL                             2.66

Depth(m)                               1.49

Draft(m)                                 0.5

Bottom Sides(mm)                   6

Top Sides(mm)                        5

Transom(mm)                         6

Hull Material                            Marine Grade Aluminum Alloy 5083

Rec.HP                                   Outboard 300*2

Standard Features

Fuel Tank Gauge √

Fuel Tank Cleaning Opening √

Outboard Protection Rails √

Storage Gasket Cover √

Fuel Tank 600L

Lifebuoy Bracket √

Fire Extinguisher Bracket √

Deck Self Drain Holes √

Exhaust Vent Hose √

Enclosed Driving Room √

Hand Rail √

Bollard √

Hinge √

Control Panel √

Fence Of Driving Room √

Ladder √

Marine Pilot Seat With Damping √

Bench With Storage Boxes √

Fuel Hose √

Control Panel √

Zinc √

Safety Door Hinge √

Navigation Light √

Anchor Light √

Marine Hinch Cover √
